Description

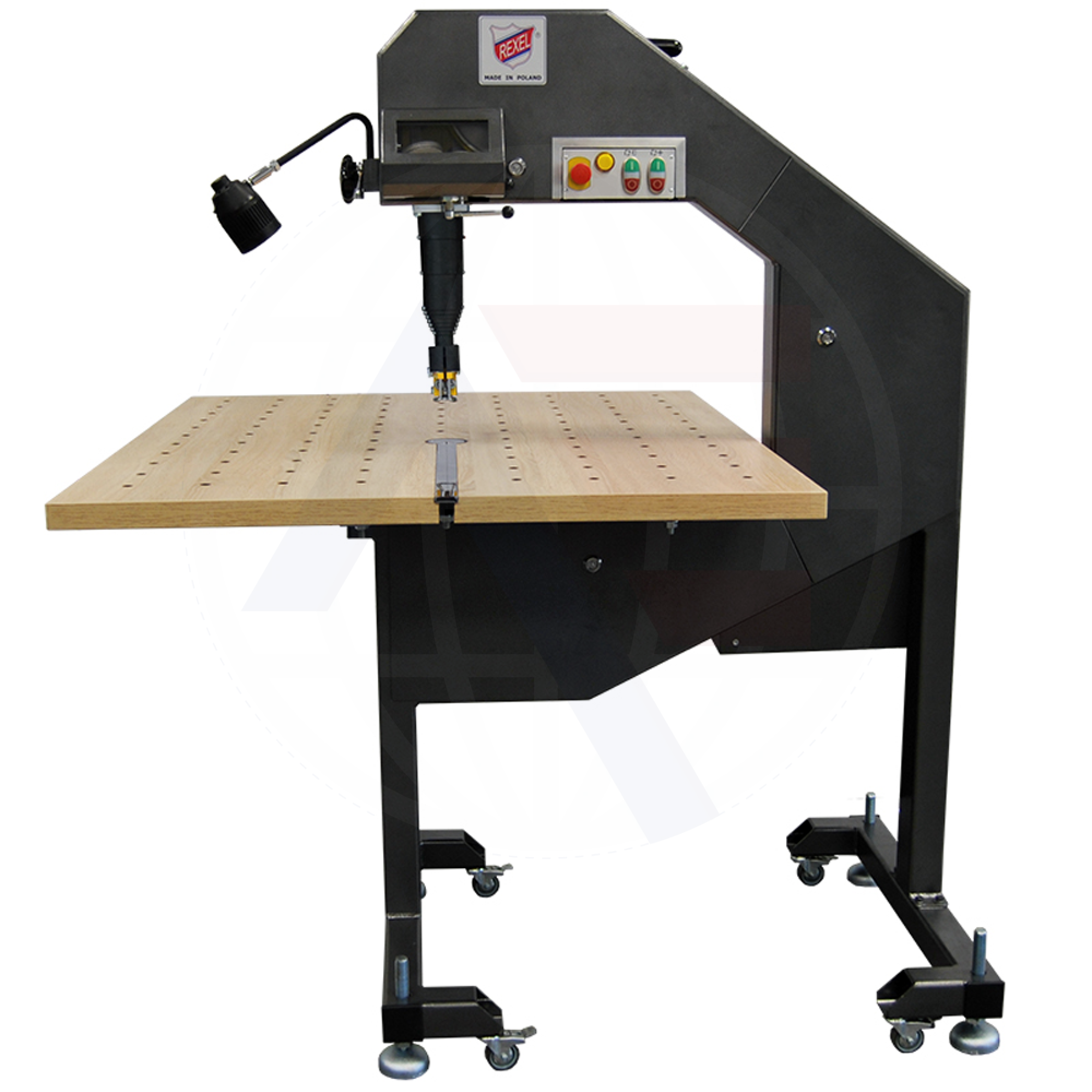

The Rexel R500 compact band knife machine is a powerful and versatile tool for cutting fabric, leather, cardboard, upholstery foam, rubber, and paper. It can be set up with any type of band knife (straight, convex, concave, or toothed), and is solidly constructed with powder-coated steel to ensure that it is sturdy and durable.
The tabletop is airflow-equipped to increase the ease of material movement, and the cutting height is adjustable to suit the application. This makes it particularly well suited to cutting small stacks of material.
Band knife machine R500 and R500/F (with variable band speed control for different materials) are compact machines for cutting small stacks of material.
Key features:
- The band knife machine is a powerful and versatile tool for cutting fabric, leather, cardboard, upholstery foam, rubber or paper.
- Any band knife can be used with this device (straight, convex, concave or toothed).

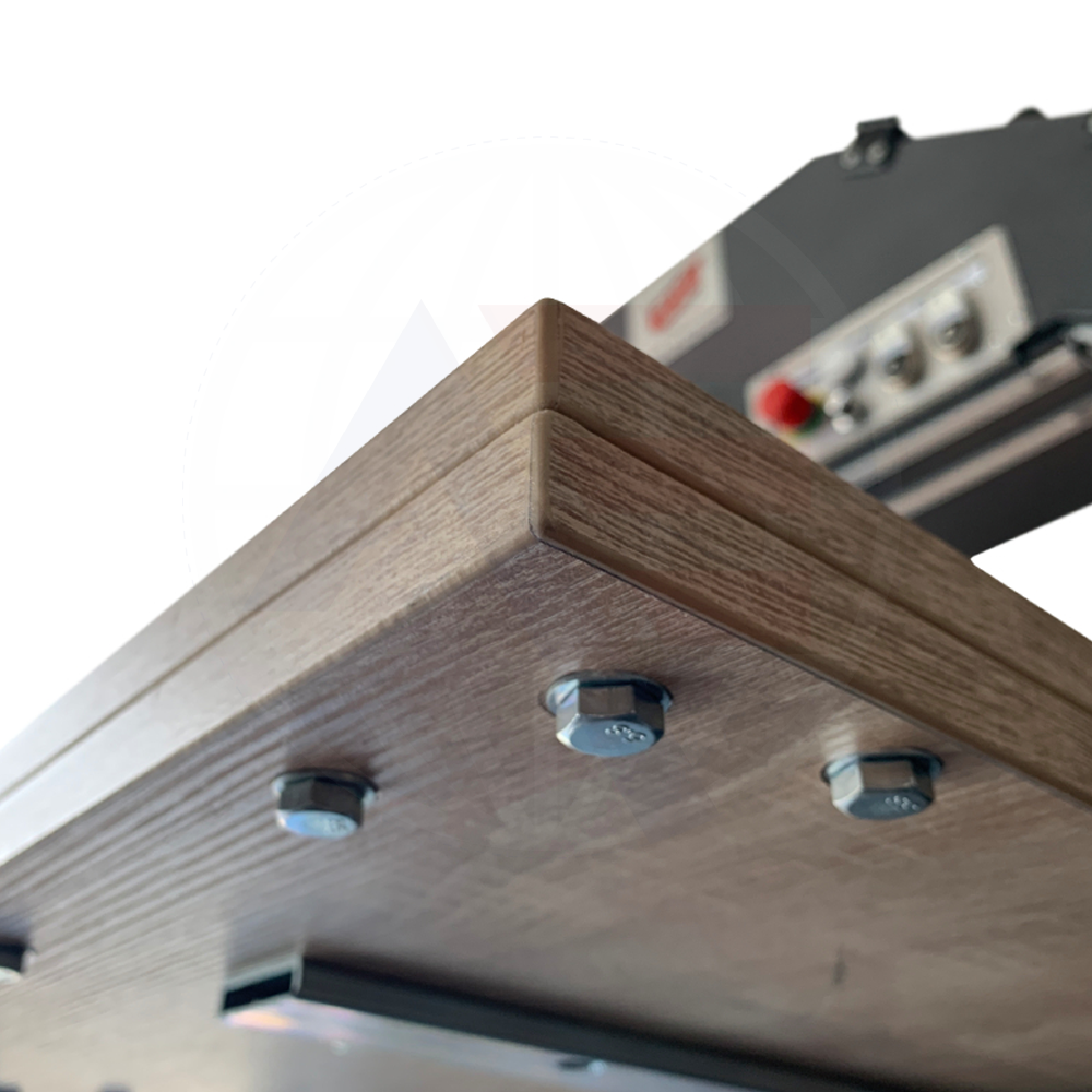

- Smooth or airflow-equipped tabletops.
- Each machine is equipped with a knife sharpener and a dust-collecting tray covered with transparent casing.
- A solid construction made of powder-coated steel.
- Adjustable cutting height.
- All machines are equipped with a mechanical band catcher and the panels are protected with end switchers.
Specifications:
Model: R500
Tabletop dimensions: 1200 x 1000 mm (47.25" x 39.35")
Overall dimensions (LxWxH): 1320 x 1200 x 1800 mm (51.95" x 47.25" x 70.85")
Cutting height: 190 mm (7.48")
Band length: 2845 mm (111.8")
Arm length: 500 mm (19.7")
Knife speed: 0-14 m/s (45.9 ft/s)
Guide wheels quantity: 3
Voltage (optional 230 V / 50 Hz): 400 V / 50 Hz
Motor Power: 1.1 kW
Inverter for speed variation: No
Tabletop with air-cushion or smooth: Yes
Sharpening device: Yes
Operating light: Yes
Mechanical bandknife catcher: Yes
Vacuum system (optional): No
Touchscreen control panel: No
Control panel with buttons: Yes
Castors for easier installation: Yes
Measuring stop PR-3 (optional): No
