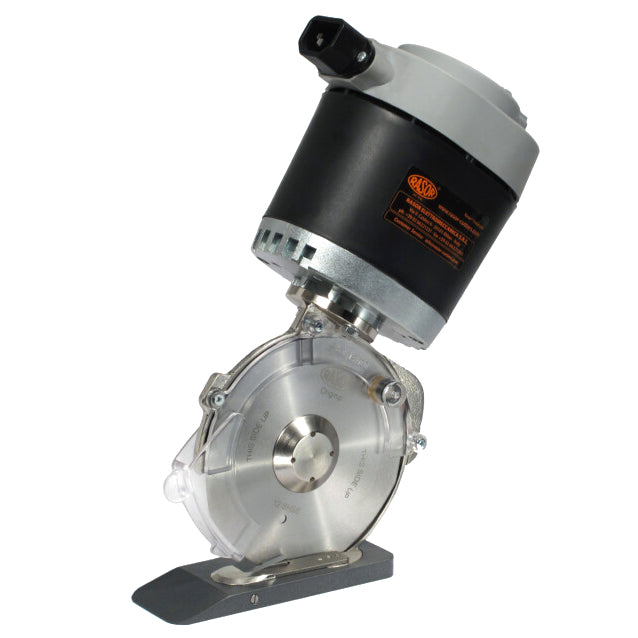

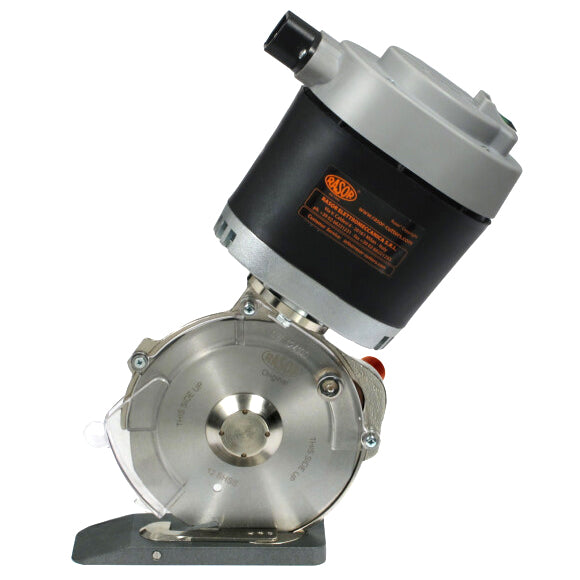

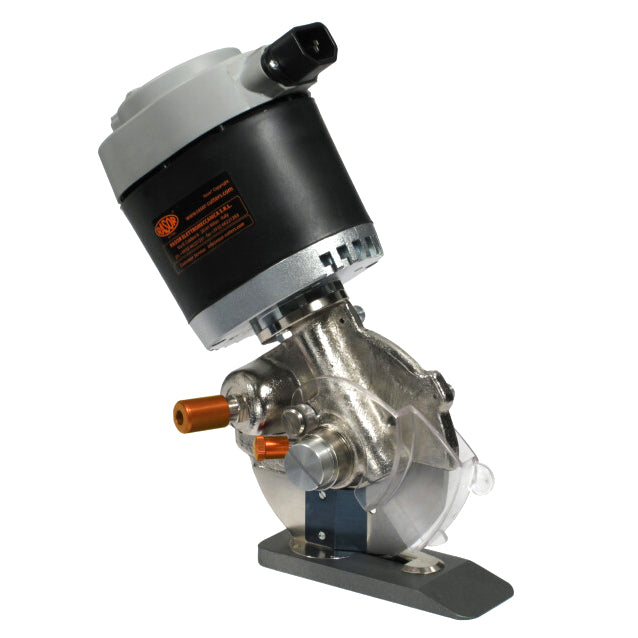

Rasor SW12S Single-Phase Cutting Unit
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Business Lease from £24.98 + VAT per month*
Click here to find out more about Sole Trader and Limited Business Leasing.
*Example: Cash Price of £1,100.00 + VAT, 60 monthly repayments of £24.98 + VAT, Total term of assest finance 60 months, Total charge for credit £398.86 + VAT, Total Amount payable £1,498.86 + VAT. Nett Cost to Business £1,259.55. Tax Relief at 19% £239.31. Minimum leasing value of £1000 + VAT. Subject to status & credit acceptance. Prices may vary. T&C's Apply.
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information
The Rasor SW12S is a cutting unit designed for use with high thickness materials and suitable for applications in the textile and technical fabrics fields.
It reaches the highest level of technology and safety. Weighing in at just 3Kg, it still guarantees power and high thickness cutting reliability. The combination system of blade and counterblade allows sharp and precise cutting without rag grinding.
Its 180Watt balanced and silenced motor combined with high resistance bronze/steel gear couplings creates long lasting stability. The 8-edged 120mm diameter knife allows the cutting of any fabric up to 50mm thickness even in multiple layers.
The SW12S base is Teflon® coated to remove friction between the base and the fabric. It is possible to install this cutting unit on sliding rails within minimal space. The push button sharpening stone system allows the knife edge to be sharpened in less than 10 seconds without disassembly.
This model is ideal for transversal cutting, as it is arranged with an anchor flange which allows an easy fit on a fixed or automatic stirrup. For continuous trimming processes the model SW12S is also available in left side version (specular) as model SW12SSX.
SPECIFICATIONS
| Blade diameter | 120 mm (4.7″), with hard metal counterblade |
| Blade descr. | 12SHSS, 8-edges, HSS steel |
| Blade speed | 850 r.p.m. |
| Cutting ability | 50 mm (2″) |
| Power | singlephase – 180 W |
| Max absorption | 2.5 A |
| Net weight (with power supply cord) | 4500 g |
| Total weight (with packaging) | 6200 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate |
