Rasor GRT12DT 3-Phase Direct Drive Cutting Unit
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Business Lease from £35.79 + VAT per month*
Click here to find out more about Sole Trader and Limited Business Leasing.
*Example: Cash Price of £1,576.00 + VAT, 60 monthly repayments of £35.79 + VAT, Total term of assest finance 60 months, Total charge for credit £571.46 + VAT, Total Amount payable £2,147.46 + VAT. Nett Cost to Business £1,804.59. Tax Relief at 19% £342.87. Minimum leasing value of £1000 + VAT. Subject to status & credit acceptance. Prices may vary. T&C's Apply.
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

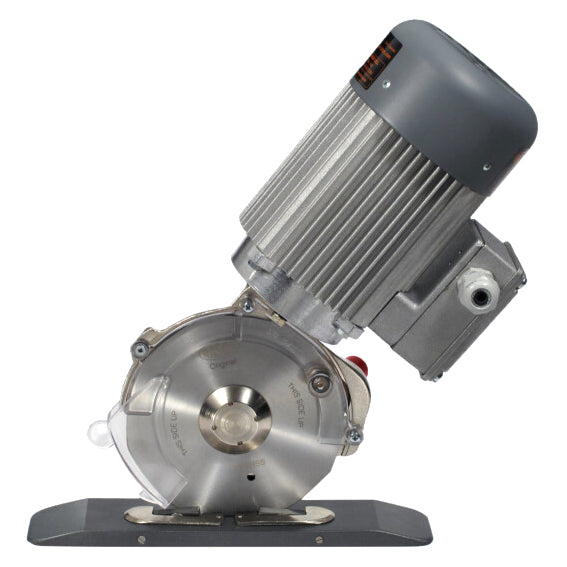

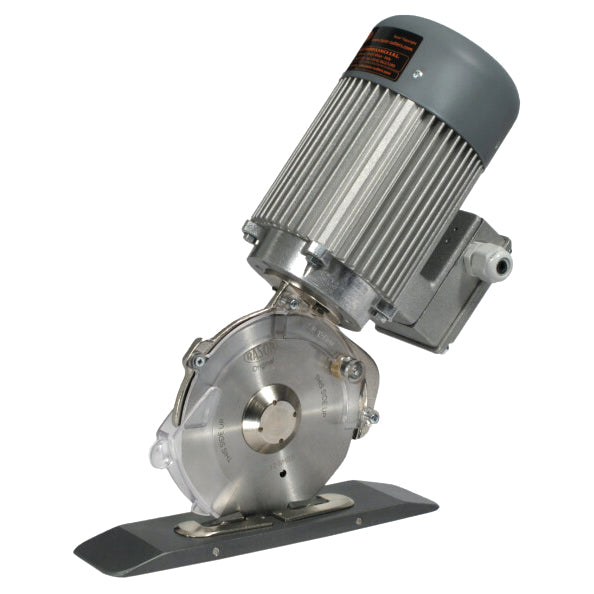

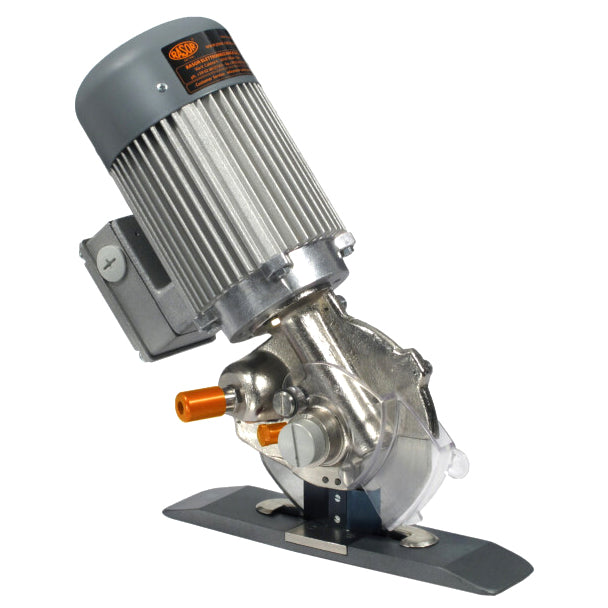

The model GRT12DT is a three-phase cutting unit suitable for cutting thick technical fabrics and composite materials.

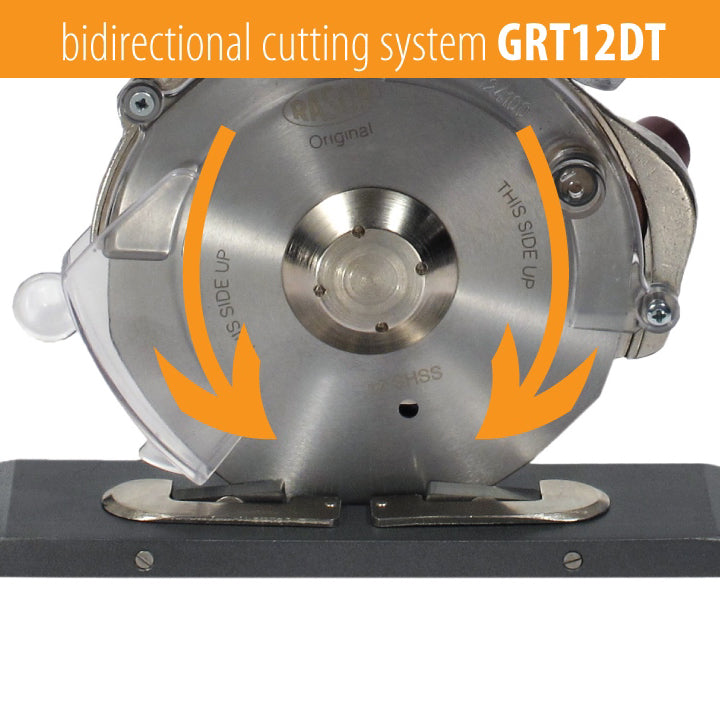

Thanks to the double carbide counter-blade, the GRT12DT can cut in both directions (through an inverter). This unique feature allows you to save time in cross-cut processes.
The three-phase induction motor is balanced and noiseless. It does not require any maintenance so can easily be used for continuous 24 hours-a-day production process. This type of motor combined with the high-quality bronze/steel couplings ensures the cutting unit is reliable and durable.
The 8-edged 120mm knife can cut up to a thickness of 50 mm including multiple layers. High torque combined with a slow RPM of the knife means this cutter can even be used on rubber and plastic based materials for applications such as carpets and industrial flooring.
The push button sharpening stone allows the blade to be sharpened in less than 10 seconds without removing the knife. The aluminium base is Teflon® coated to reduce friction with the material and can be installed on sliding rails within a small space.
The GRT12DT is ideal for transversal cutting and is arranged with an anchor flange to be easily adjusted on a fixed or automated hanger. Powerful and bi-directional cutting makes the GRT12DT the perfect solution for the most complicated O.E.M application.
SPECIFICATIONS
| Blade diameter | 120 mm (4.7″), with double hard metal counterblade |
| Blade descr. | 12SHSS, 8-edges, HSS steel |
| Blade speed | 400 r.p.m. |
| Cutting ability | 50 mm (2″), bidirectional |
| Motor | 3-phases asynchronous 380/400* V, 50 Hz |
| Power | 180 W |
| Consumption | 0.52 A |
| Protection | IP65 – CL F |
| Net weight (with power supply cord) | 4590 g |
| Total weight (with packaging) | 6290 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate |
