Rasor GRT-MINIVM 3-Phase Direct Drive Cutting Unit
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

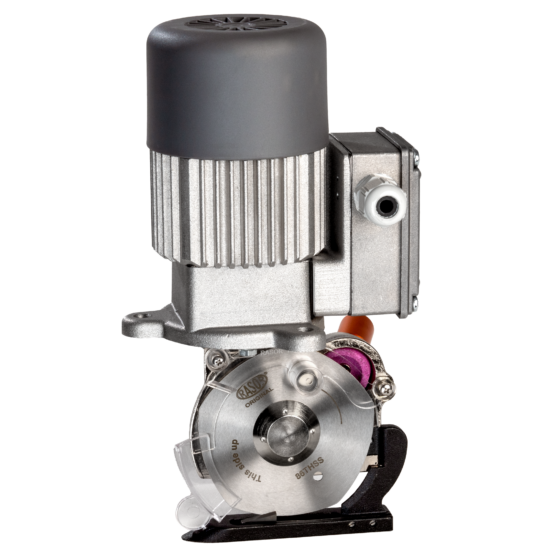

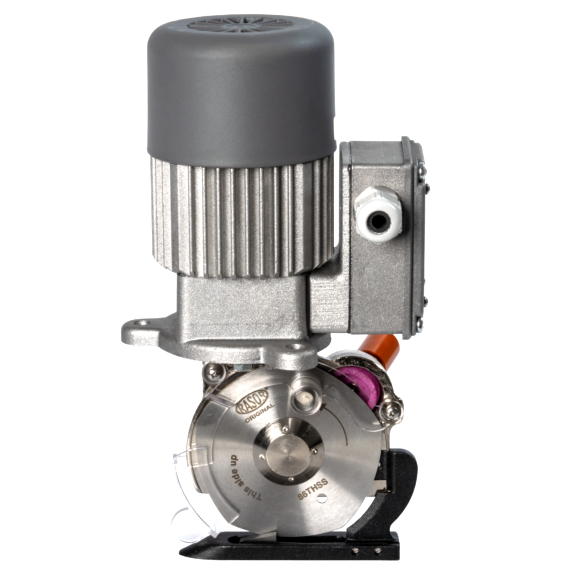

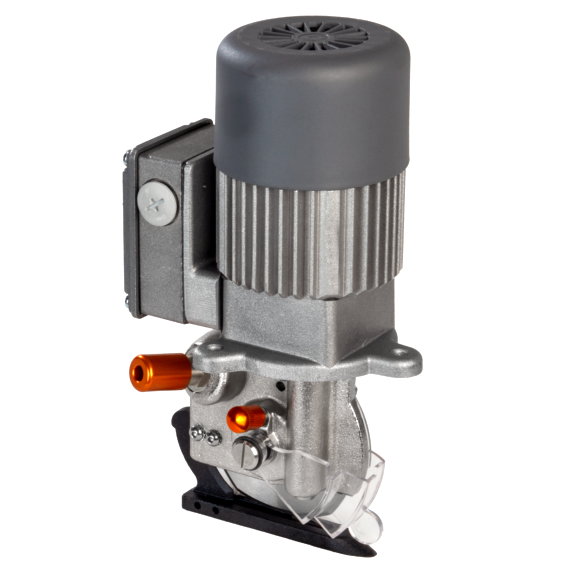

Designed to cut a wide range of textiles and flexible elastomers up to 25 millimetres thick, the new Rasor GRT-MINIVM offers incomparable power and is exceptionally user-friendly.
The GRT-MINIVM is designed with safety and ease of use in mind. The upright design allows installation in confined spaces, and it can be used for cross, endless and stripe cutting, making it the ideal choice for a wide range of cutting applications.

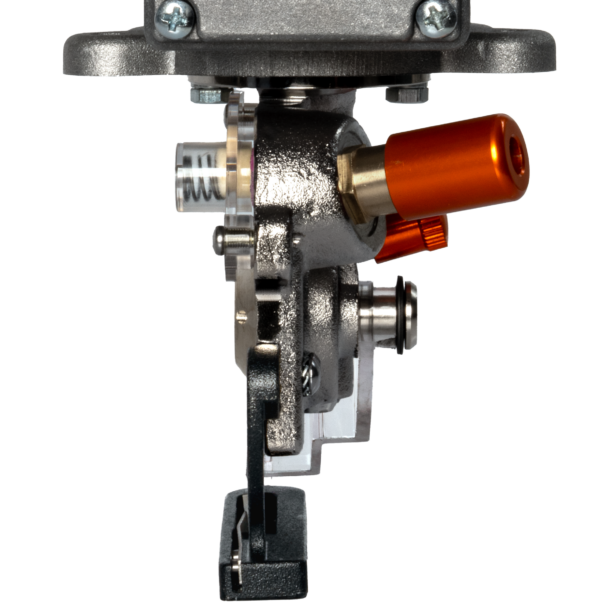

The motor housing is held by a central foot fitted behind the blade in central position. This system allows the pressure to spread and guide the machine through the fabrics on both sides of the blade. It also has a guard to protect fingers during use.

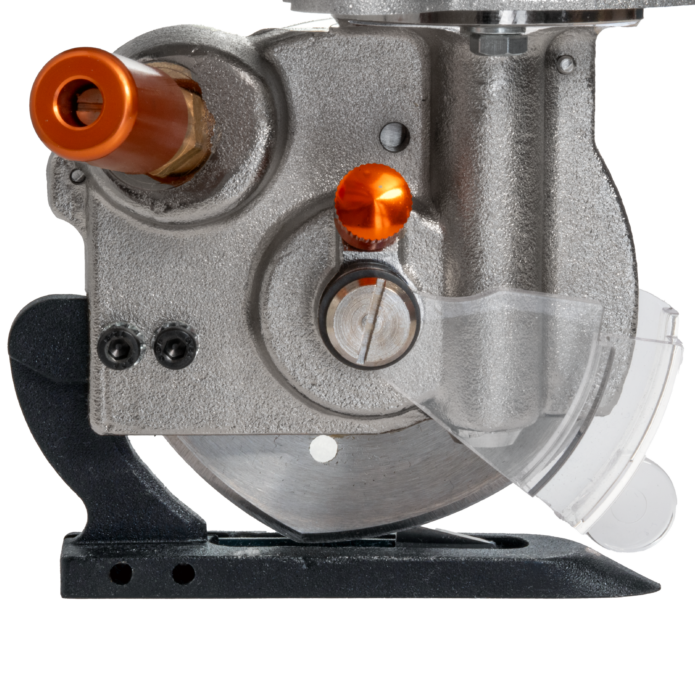

The semi-automatic sharpening stone allows the blade to be sharpened in less than 10 seconds without removing the knife, and the special flange allows the unit to be installed in different ways.
The knife is half-free on both sides to avoid winding problems even with tough fibres. The GRT-MINIVM has an industrial 3 phase motor, in combination with extra strong steel brass gears, to guaranty low maintenance and exceptional durability. The new gears reach up to 550rpm and make cutting flawless and smooth.
The GRT-MINIVM can cut a wide range of materials, including classic fabrics and the latest hybrid weavings. 3D files are available on request.
For safety reasons the use of a steel protection glove is mandatory.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |

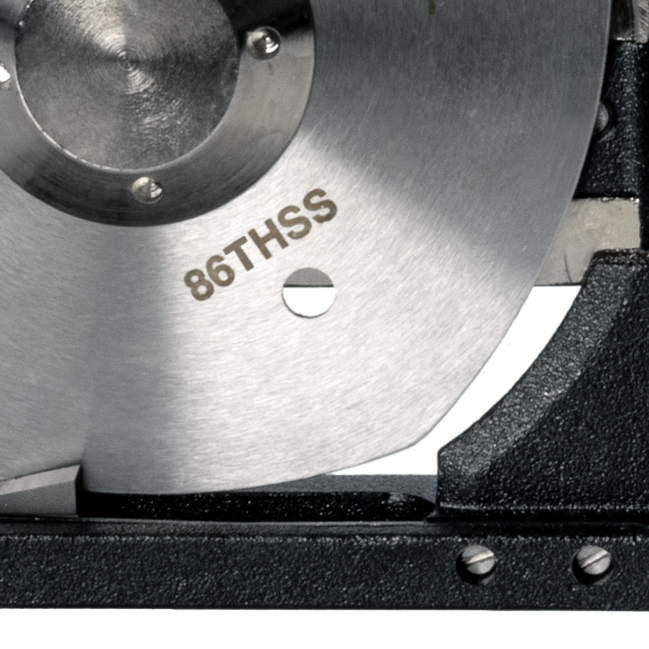

| Blade descr. | 86THSS, 8-edges, HSS steel |
| Blade speed | 550 r.p.m. |
| Cutting ability | 25 mm (1″) |
| Motor | 3-phases asynchronous 380/400* V, 50Hz |
| Power | 50 W |
| Consumption | 0.3 A |
| Protection | IP65 – CL F |
| Net weight (with power supply cord) | 2650 g |
| Total weight (with packaging) | 4750 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * This model can be set up at 3-phase 220 V |
