Product Information

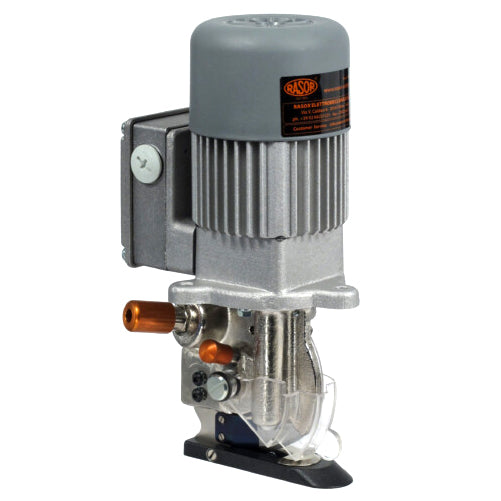

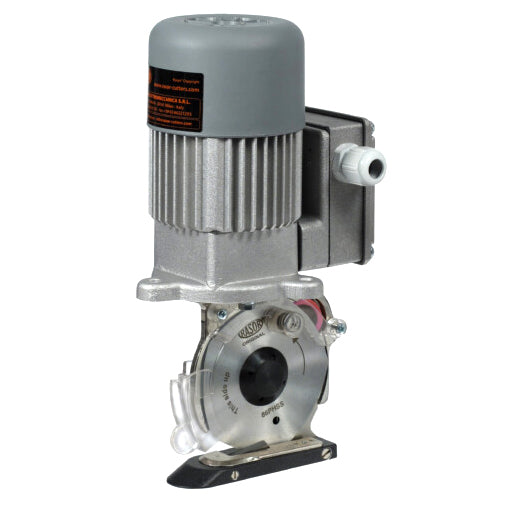

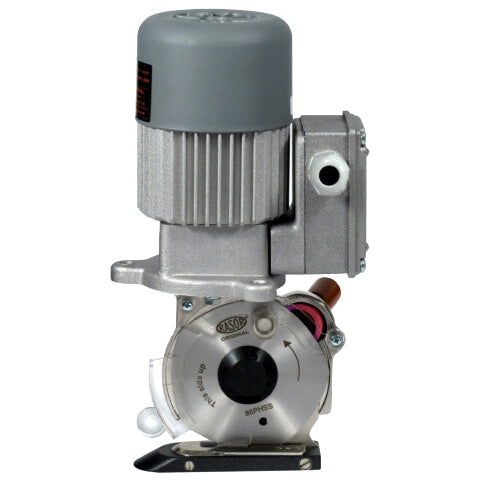

The model GRT-MINIV is the smallest three-phase cutting unit with a carbide counter-blade. For many years within the market, it is installed on the main tentering machines.
The GRT-MINIV is a powerful tool, yet still small and light (weighing in at less than 3 Kg.). It stands out from other Rasor models as the motor is installed in a vertical position, upright to the cutting direction.
The 5-edged knife guarantees a clean cut without rag grinding, and the new semi-automatic sharpening stone sharpens the blade in less than 10 seconds without removing the knife.
The GRT-MINIV is widely used for textile, leather, light carpet and technical fabric applications. The three-phase induction motor is balanced and noiseless. As this cutting unit does not need any regular maintenance it can be easily used during a 24-hour production process.
The GRT-MINIV is ideal for transversal cutting and is arranged with an anchor flange to be easily adjusted on a fixed or automated hanger. The aluminium base is Teflon® coated to reduce friction with the material and can be installed on sliding rails within a small space.
The minimal maintenance and handling costs make the model GRT-MINIV a great value reliable cutting solution for any O.E.M. application.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
| Blade descr. | 86PHSS, 5-edges, HSS steel |
| Blade speed | 550 r.p.m. |
| Cutting ability | 25 mm (1″) |
| Motor | 3-phases asynchronous 380/400* V, 50 Hz |
| Power | 55 W |
| Consumption | 0.3 A |
| Protection | IP65 – CL F |
| Net weight (with power supply cord) | 2650 g |
| Total weight (with packaging) | 4750 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * This model can be set up at 3-phase 220 V |
