Rasor FP862 Pneumatic Hand Shears
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Business Lease from £25.75 + VAT per month*
Click here to find out more about Sole Trader and Limited Business Leasing.
*Example: Cash Price of £1,134.00 + VAT, 60 monthly repayments of £25.75 + VAT, Total term of assest finance 60 months, Total charge for credit £411.19 + VAT, Total Amount payable £1,545.19 + VAT. Nett Cost to Business £1,298.48. Tax Relief at 19% £246.71. Minimum leasing value of £1000 + VAT. Subject to status & credit acceptance. Prices may vary. T&C's Apply.
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

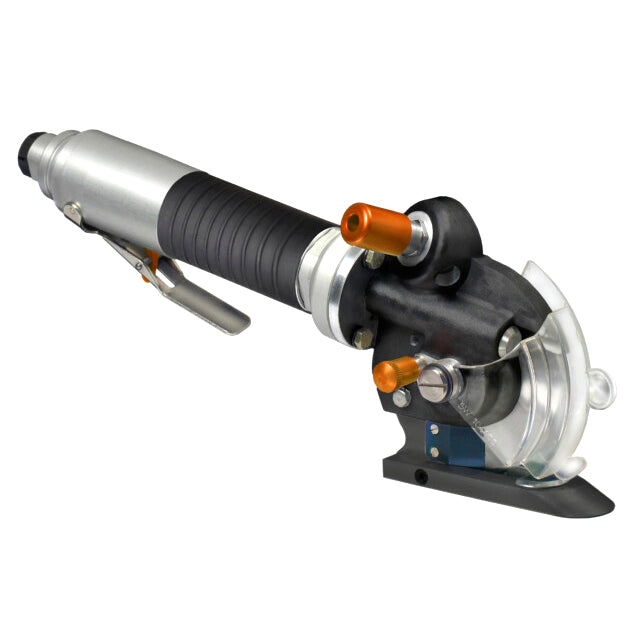

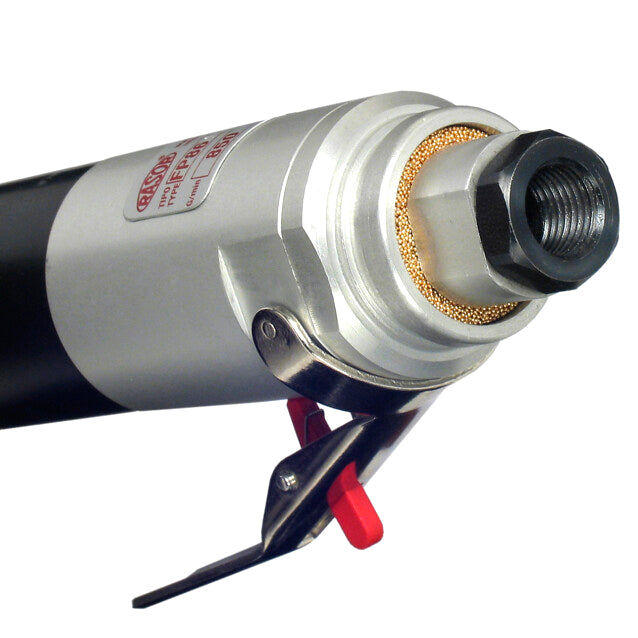

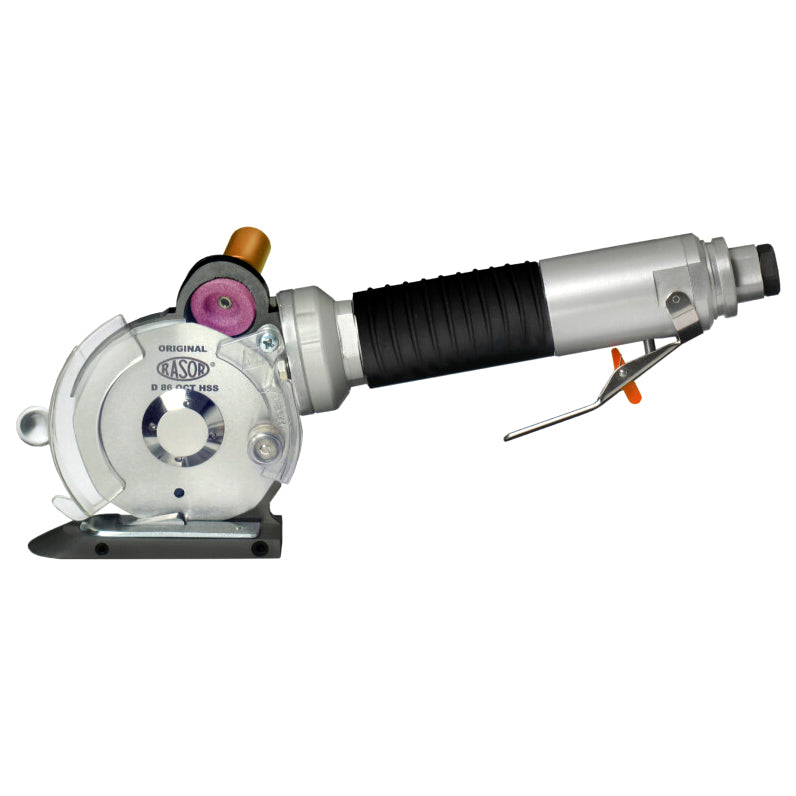

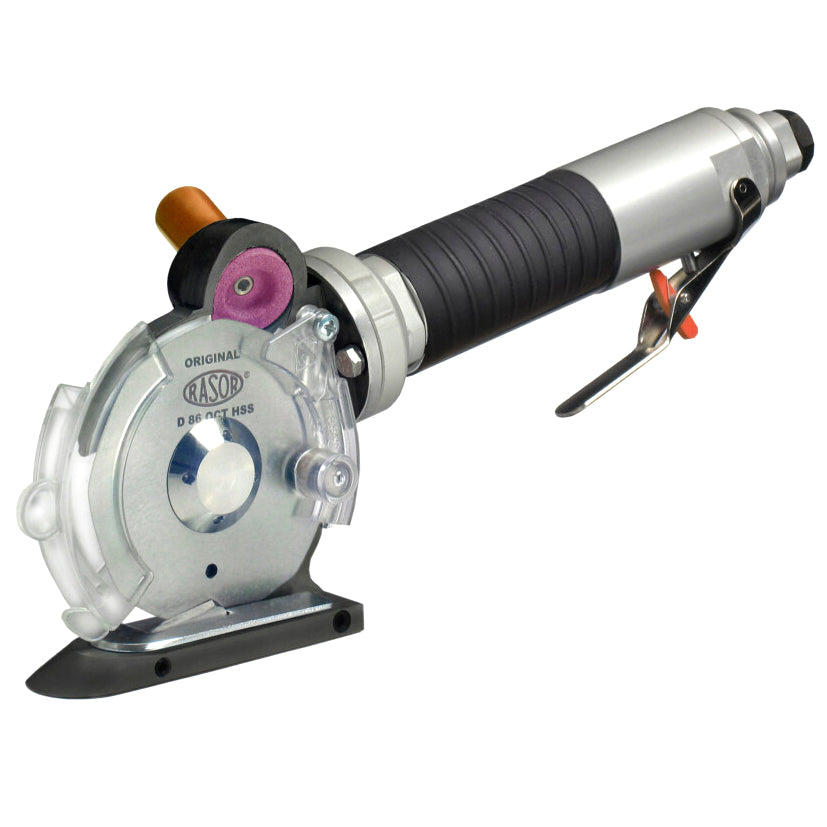

The new model FP862 is the most powerful pneumatic hand-held cutting machine ever produced by Rasor.
It features an air compressed motor which is entirely made by Rasor. and thanks to the latest generation mechanical and pneumatic components, this excellent turbine reaches a power of 400W with 20.000 RPM and a very high torque.
The diameter of the motor is now only 40mm, the smallest within its category. The rotor blades are made of VANESTAR® material which minimises weight and friction. RPM is now 1400 for ultra-fast cutting.
The new FP862 has an 86mm 8-edged knife which is able to cut any kind of material at the “flexible stage” up to maximum cutting thickness of 25mm. This is the reason why this model is often used in textile, technical fabric, and composite material applications.
Due to the high power it is able to cut several layers of fibre glass and carbon fibre. The high torque means it can cut even rubber materials with plastic bases for carpet and flooring applications.
The motor housing is now PTFE coated for heat reduction with an aggressive “look”. The foot is aluminium made, light and small to allow cutting straight or curved sections easily and precisely.
The push button sharpening stone allows the sharpening of the knife edge to be carried out in less than 10 seconds without disassembly.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
| Blade descr. | 86THSS, 8-edges, HSS steel |
| Blade speed | 1300 r.p.m* |
| Cutting ability | 25 mm (1″) |
| Power | 400 W (at nominal air supply conditions)* |
| Working pressure | 6 bar* (±1 bar) with lubricated air |
| Air consumption | 9 l/sec* |
| Net weight | 1100 g |
| Total weight (with packaging) | 1995 g |
| Sound pressure | 72 dB (EN ISO 15744)* |
| Vibrations at start up | 1,36 m/sec2 (ISO 8662)* |
| Minimum brightness for working operations | LUX 200 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure |
