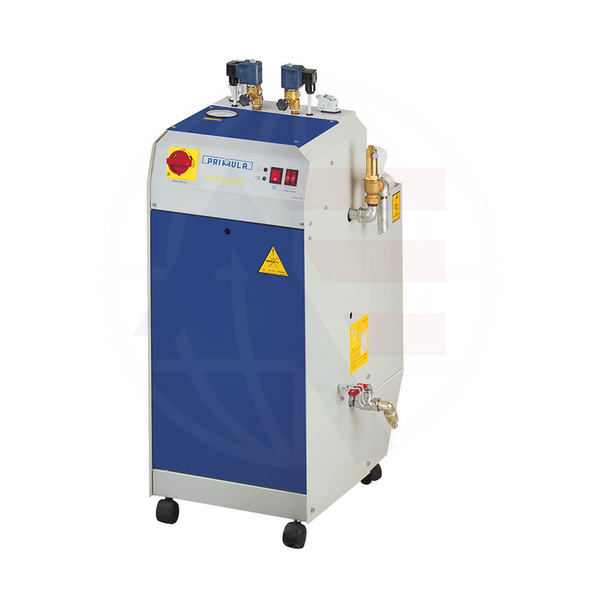

The Primula Ecovapor is an industrial electric steam generator which is designed for continuous operation by dry cleaners, tailor shops, ateliers, etc. It is electronically controlled by a PCB and has a water level control system. Depending on the subclass you select, this generator has different connections for one, two, or three steam irons. It is easy to use and ideal for professional environments There are 6 different models available, please see below for more information.
Subclasses:
ECOVAPOR 1-2.5 – With one steam valve and steam supply for 1 steam iron – 230v, 2.5kw heating, 3.25kg/h steam production.
ECOVAPOR 1-4 – With one steam valve and steam supply for 1 steam iron – 230v, 4kw heating, 5.2kg/h steam production
ECOVAPOR 2-4 – With 2 steam valves and steam supply for 2 steam irons – 230v, 4kw heating, 5.2kg/h steam production
ECOVAPOR 2-6 – With 2 steam valves and steam supply for 2 steam irons – 400v, 6kw heating, 7.8kg/h steam production
ECOVAPOR 3-6 – With steam supply for 3 irons – 400v, 6kw heating, 7.8kg/h steam production
Please contact our team directly for more information if you have any queries about which piece of equipment would be best suited to your requirements.
We recommend that you use Antiscal (water soluble polymer which prevents lime build-up) with any steam generator to ensure trouble free operation.
Primula Ecovapor Features
- Industrial electric steam generator for continuous operation
- Electronic water level control system
- Cylindrical 8.5l boiler which is 6.5mm thick (water drops glide to the bottom)
- Welded inside and outside to prevent oxidation
- Water inlet from 12mm copper tube
- External safety valve
- 20l external water tank
- Handy wheels for easy movement and servicing
- Built-in electric water pump with thermal protection
- Water outlet valve blocking system to reduce the risk of burns
Primula Ecovapour Specifications
- Steel boiler – 8.5l
- Operating pressure – 3.5 bar (4.5 bar upon request)
- Test pressure – 6 bar
- Power supply – 400v-3ph-50hz or 230v-1ph-50hz
