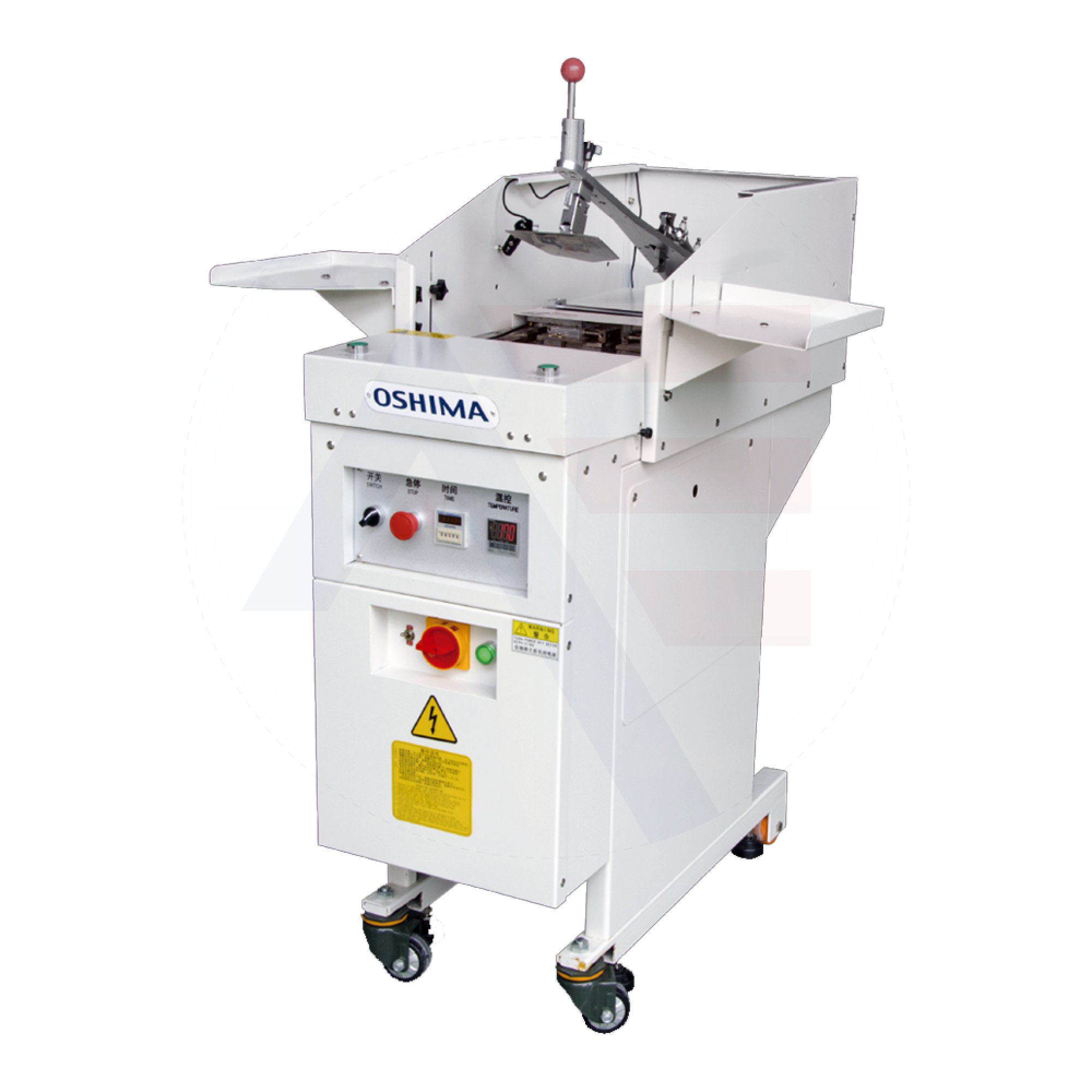

This model is a fixed pocket machine, single-station hot pressing on the worktable, the mould can be replaced within 3 minutes, and the operation is rapid without skilled workers.
The electronic thermostat is easy to operate and the temperature difference is controlled at ±3°C. OP-302 has output of 100 -200 pieces per hour; OP-303 has output of 300-450 pieces per hour, suitable for pressing shirt pockets. The size of the pocket mould must be provided for additional matching when purchase.
Specification
Model |
OP-302 / OP-303 |
Power Supply |
1P 220V-50/60Hz |
Heater (Kw) |
2 / 4 |
Pressing width (mm) |
68-168 |
Pressing length (mm) |
80-150 |
Dimensions LxWxH(mm) |
1025x435x1185 / 1025x735x1270 |
Packing Volume LxWxH(mm) |
1125x535x1285 / 1125x835x1370
|
N.W / G.W (Kg) |
158/210 / 244/304 |
