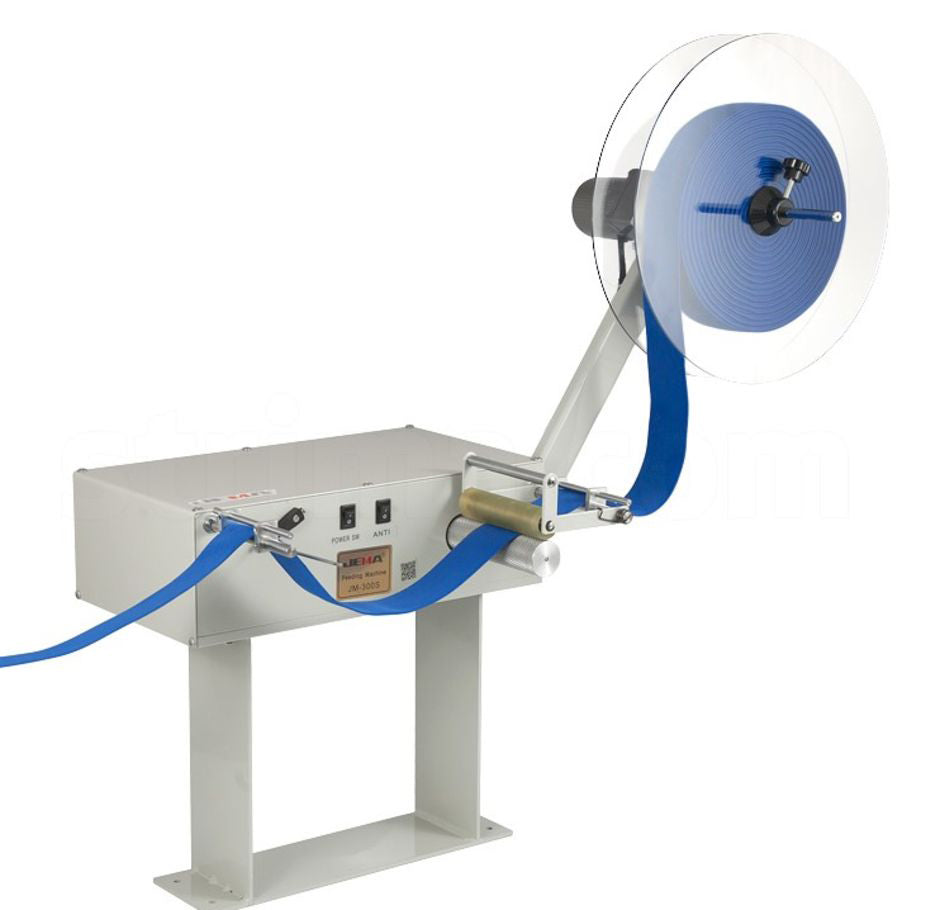

JEMA JM-300S Automatic Electronic Tape Feeder – 100mm

The JEMA JM-300S Automatic Electronic Tape Feeder is designed to provide smooth, controlled feeding of tapes, webbing, elastic and other strip materials into automatic cutting and sewing equipment.

By supplying material to the machine without unnecessary tension, the JM-300S helps maintain consistent material feed and improves cutting accuracy – particularly when working with elasticated or flexible materials that can stretch during conventional feeding.

The unit automatically responds to the operation of the connected machine, delivering material as required and reducing the need for manual handling. It is an ideal addition to automatic tape cutting machines and other production equipment where consistent, reliable material presentation is essential.

Key Features

• Automatic electronic material feeding
• Suitable for materials up to 100mm wide
• Helps feed elastic materials without unwanted tension or stretching
• Helps improve cutting length consistency and repeatability
• Suitable for elastic, webbing, braided tape, labels, ribbon and similar strip materials
• Automatic operation synchronises material delivery with production demand
• Helps prevent loose material from becoming twisted or tangled
• Suitable for material supplied from rolls, boxes or loose coils
• Reduces manual material handling
• Simple operation for production environments
• Suitable for use alongside automatic tape cutting and sewing equipment

Controlled Feeding for Elastic & Flexible Materials

When elastic or flexible materials are pulled directly into an automatic cutting machine, tension can cause the material to stretch before it reaches the cutting point. Once cut, the material relaxes and the finished component may therefore be shorter than the programmed cutting length.

The JEMA JM-300S helps overcome this problem by actively supplying the material to the machine, allowing it to enter the cutting process with significantly less tension.

This makes the feeder particularly useful for applications requiring consistent cut lengths from elastic and other stretchable materials.

Helps Prevent Tangling & Twisting

The JM-300S is also useful when processing loose material that is not supplied on a conventional roll.

Elastic, labels, webbing and similar products can be fed from a container or box while the feeder assists with controlled material delivery. This helps reduce twisting, tangling and interruptions during production.

Typical Applications

The JEMA JM-300S can be used with a wide variety of strip materials, including:

• Elastic tape
• Woven elastic
• Webbing
• Braided tape
• Binding tape
• Ribbon
• Woven labels
• Printed labels
• Hook & loop tape
• Strapping
• Other flexible strip materials

Technical Specification

Model: JEMA JM-300S
Feeding Type: Automatic electronic feed
Maximum Material Width: 100mm
Motor Speed: 1,300 rpm
Voltage: 110V / 220V
Frequency: 50/60Hz
Packed Dimensions: 450 × 445 × 405mm
Weight: Approx. 22kg

Ideal for Automatic Cutting Applications

The JM-300S is particularly well suited for pairing with automatic tape, webbing and label cutting machines. Adding an active feeder can improve material handling, reduce operator intervention and help achieve more consistent results across repetitive production runs.

For applications involving elastic or stretchable materials, we particularly recommend considering an automatic feeder to minimise material tension before cutting.

Not sure whether you need a tape feeder?
Contact AE Sewing Machines with details of the material you are processing, including its width, thickness and whether it is supplied on a roll or loose. Our team can advise on the most suitable feeding and cutting solution for your application.
