Description

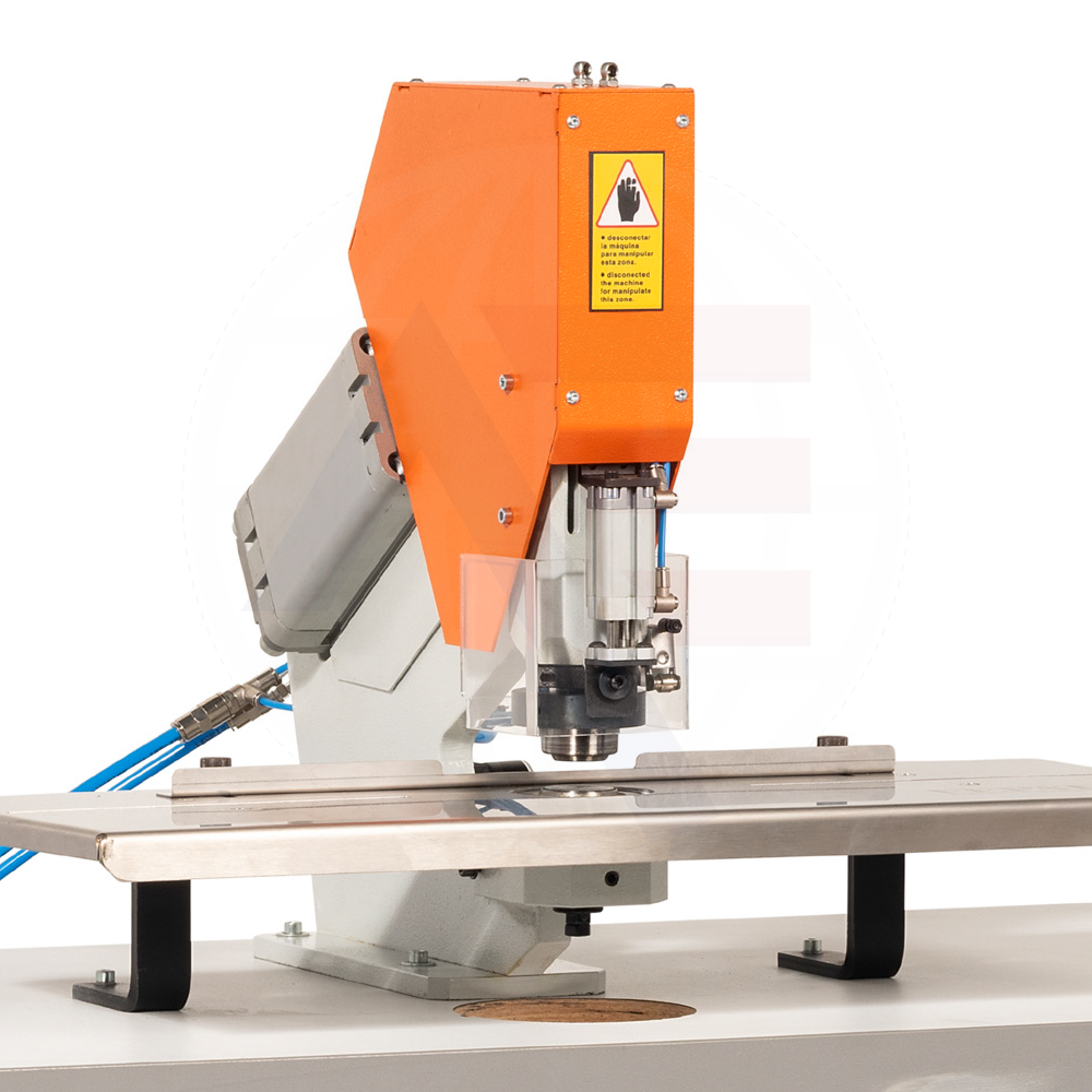

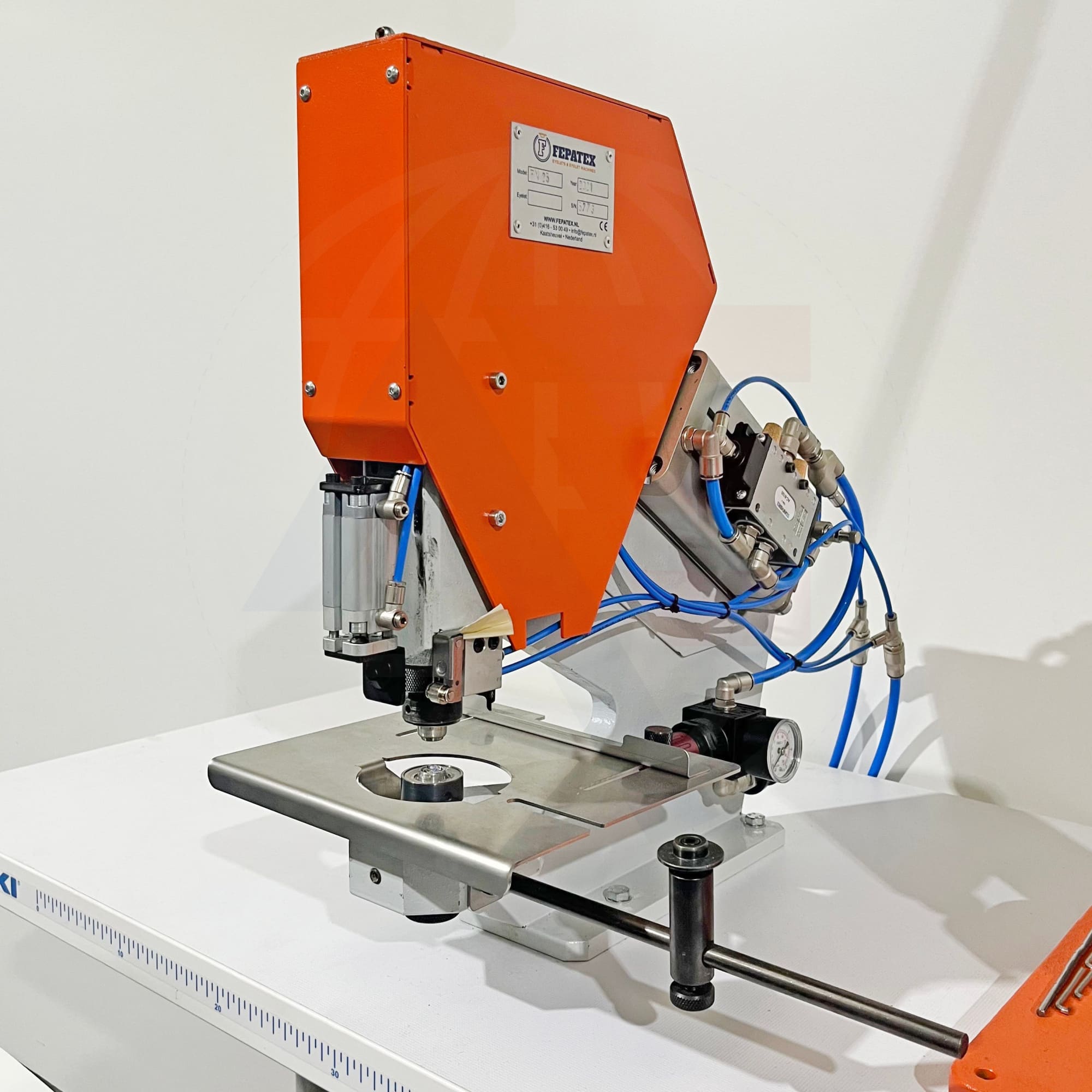

The Fepatex FM25 is a professional standard mid-range pneumatic eyelet machine which is ideal for larger scale factories. It can be used to set round metal industrial curtain and banner eyelets. As a semi-automatic model, it requires much less input from the operator than manual equivalents. It also effectively cuts and installs the eyelets in a single action, increasing productivity to up to 250 eyelets per hour. We also stock Fepatex's range of high-quality eyelets and grommets to compliment this machine.
This model is suitable for use with various different materials. It easily handles heavy fabrics such as canvas and PVC, but can also be adjusted for working with delicate materials.
Specifications
- Air pressure - 6 BAR (regulated)
- Eyelet insertion speed - approx. 200-250 per hour
- Feeding - manual

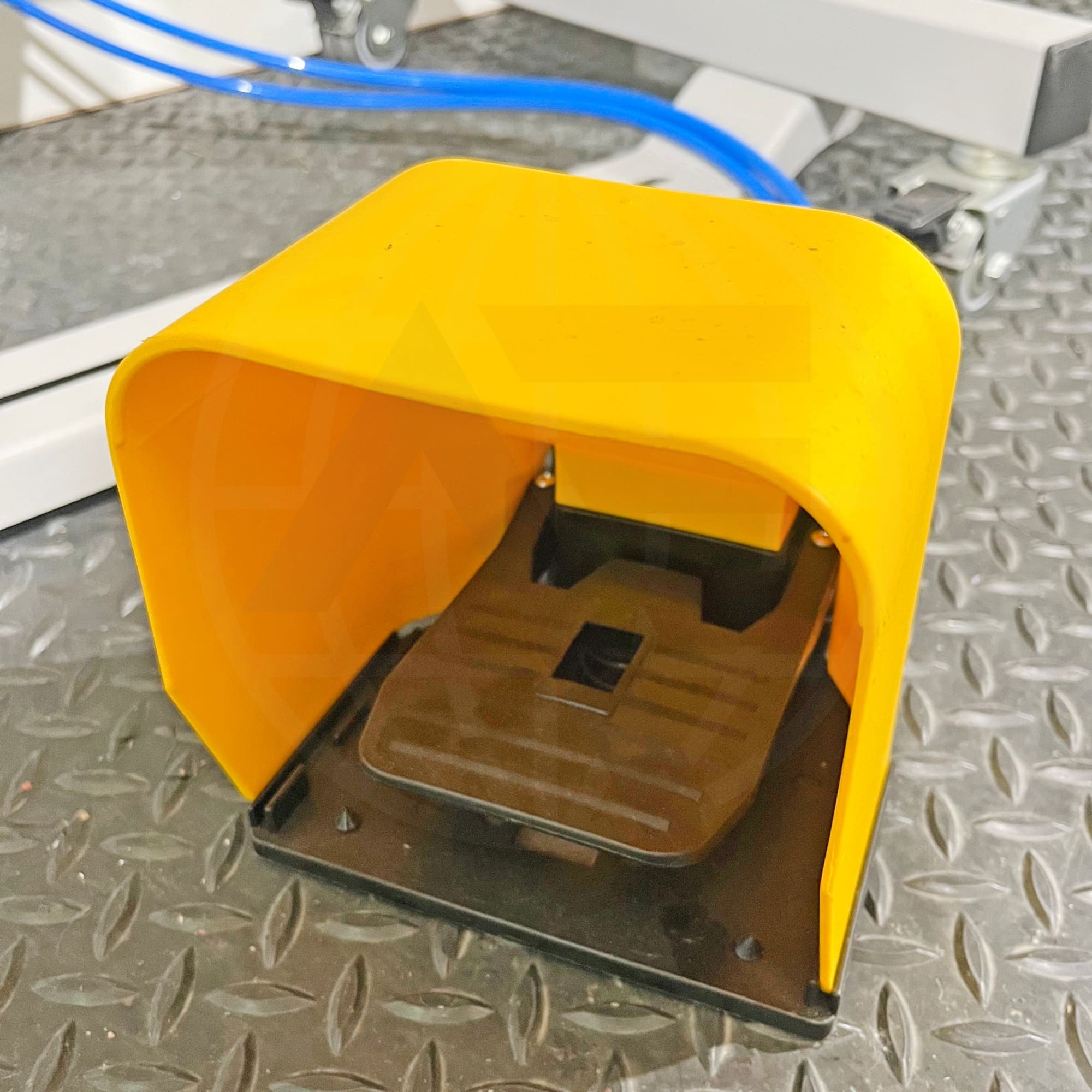

- Operation - foot pedal
- Security - finger safety system
- Working depth - 15cm
- Weight - 25kg
- Hydraulic pressure - 5 tons
- Dimensions - H48 x W15 x D43 cm
- Eyelet sizes - 10-40mm
Product Downloads
Here we have a number of downloads available for Fepatex FM25 Semi-automatic Eyelet Machine. If you require any further information for this product then please reach out to our team.
