Product Information

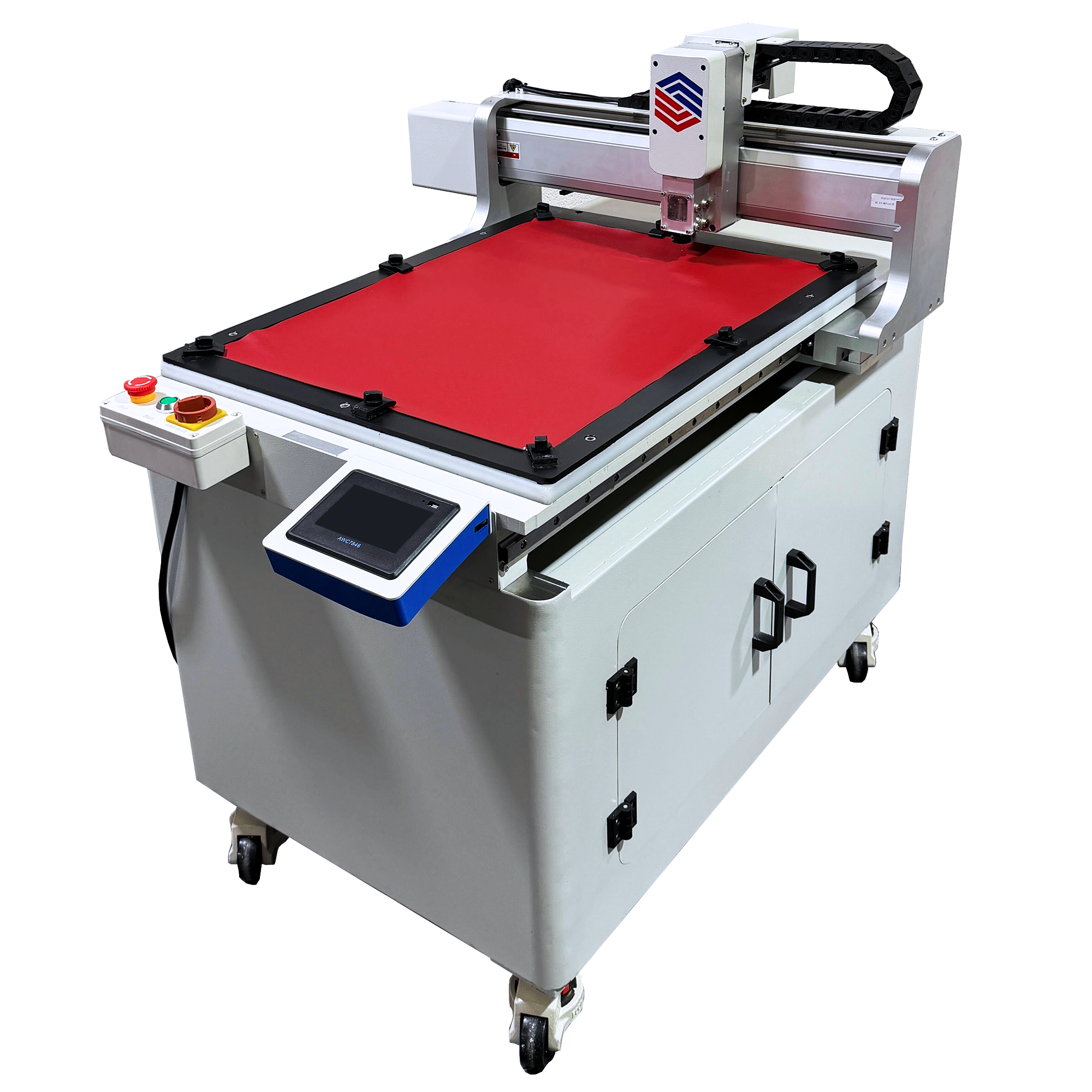

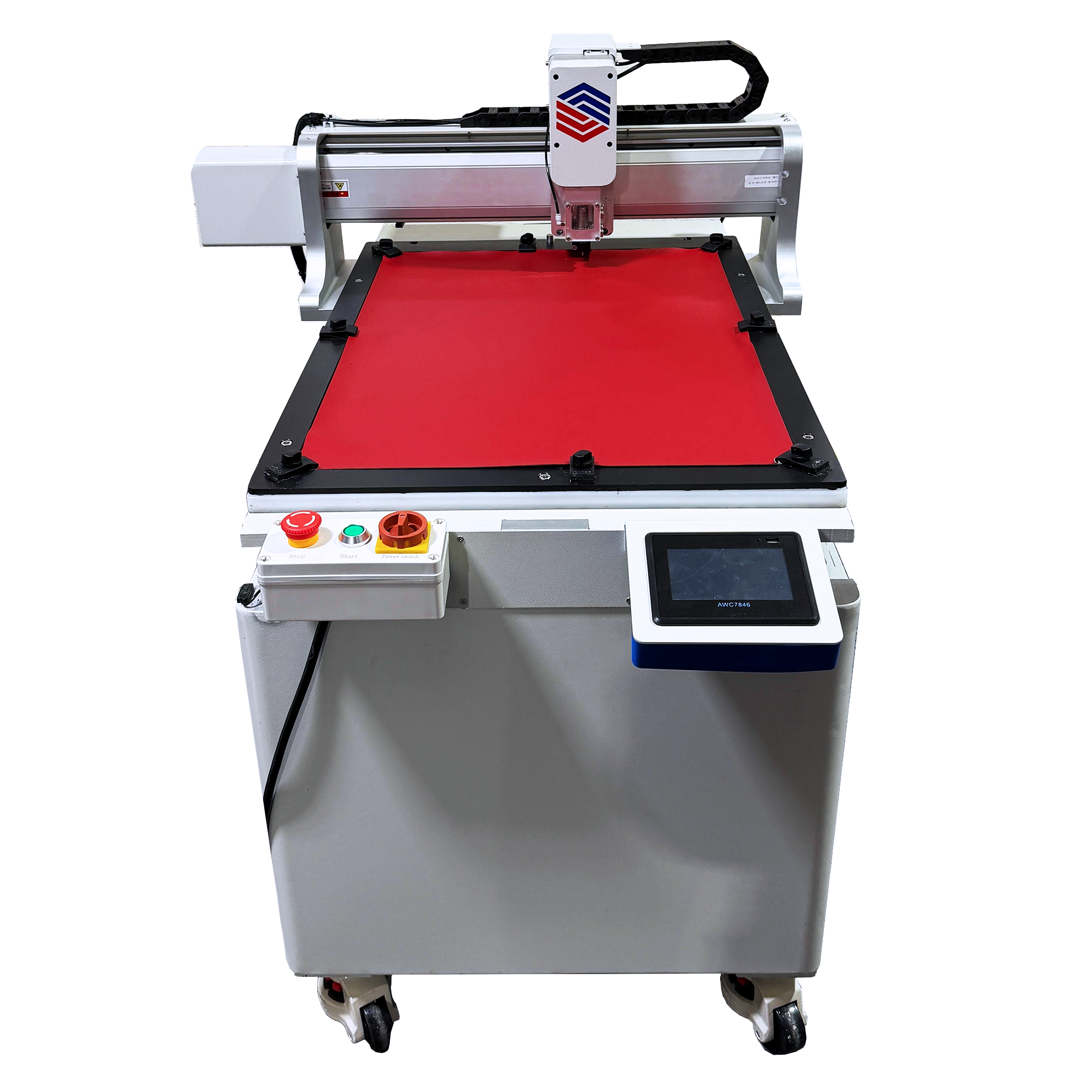

The Advance ASA-LPS6080 is a high-speed automatic leather perforation machine designed to deliver precise, repeatable perforation patterns across a wide range of leather and synthetic materials. Engineered for manufacturers demanding premium finishes, the ASA-LPS6080 combines programmable operation with exceptional accuracy, making it ideal for automotive, furniture, aviation and luxury goods production.
Capable of producing up to 900 perforations per minute, the machine enables businesses to increase productivity while maintaining a consistently high-quality finish. Operators can quickly switch between custom perforation programs via the intuitive touchscreen control panel, reducing setup times and improving manufacturing flexibility.
Whether producing perforated leather for vehicle interiors, upholstered furniture, aircraft seating, handbags or footwear, the ASA-LPS6080 offers a reliable and cost-effective solution for modern production environments.
Key Features
- Automatic leather perforation system with a 600 x 800mm working area
- Produces up to 900 perforations per minute
- Programmable perforation patterns for maximum flexibility

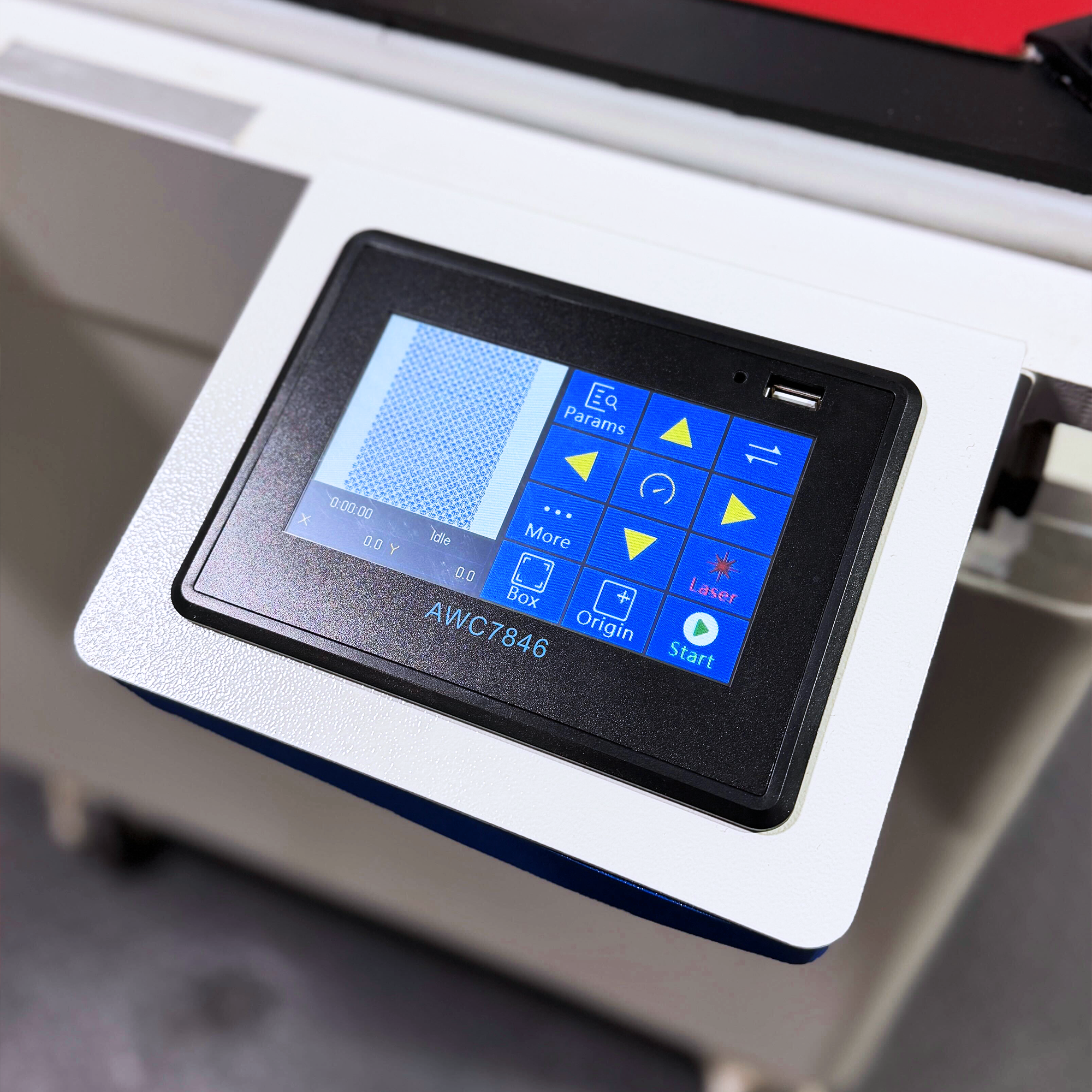

- User-friendly touchscreen control panel
- Fast changeover between production runs
- Suitable for genuine leather, PU leather and other coated materials
- Compact footprint with industrial-grade construction
- Designed for continuous production environments
- Low maintenance and easy operation
Typical Applications
The Advance ASA-LPS6080 is ideally suited to:
- Automotive seat manufacturers
- Aircraft interior and seating manufacturers
- Upholstery and furniture producers
- Luxury leather goods manufacturers
- Handbag and luggage production
- Footwear manufacturing
- Interior design and decorative leather applications
Technical Specification
| Specification | Details |
|---|---|
| Model | Advance ASA-LPS6080 |
| Processing Speed | 900 pcs/min |
| Working Area | 600 x 800mm |
| Power | 3kW |
| Power Supply | 220V, 50/60Hz |
| Air Pressure | ≤0.6 MPa |
| Machine Dimensions | 1530 × 980 × 1130mm |
Why Choose the Advance ASA-LPS6080?
Manufacturers increasingly require perforated leather finishes to enhance aesthetics, breathability and product value. The Advance ASA-LPS6080 delivers the speed, consistency and repeatability needed to meet these demands while significantly reducing manual labour and production bottlenecks.
With UK sales, installation, training and after-sales support available from AE Sewing Machines, the ASA-LPS6080 provides a complete turnkey solution for businesses looking to expand their leather processing capabilities.
Check out the product specification below for the Advance ASA-LPS6080 Automatic CNC Leather Perforation System (600x800mm Area). If you require any further information for this product then please reach out to our team.
Here you can see our collection of spare parts and accessories for Advance ASA-LPS6080 Automatic CNC Leather Perforation System (600x800mm Area). If you require any further information for this product then please reach out to our team.
Here we have a number of downloads available for Advance ASA-LPS6080 Automatic CNC Leather Perforation System (600x800mm Area). If you require any further information for this product then please reach out to our team.
