Groz Beckert 134-35 SAN 5 GEBEDUR Size 110 Needles
Brand: Groz Beckert
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

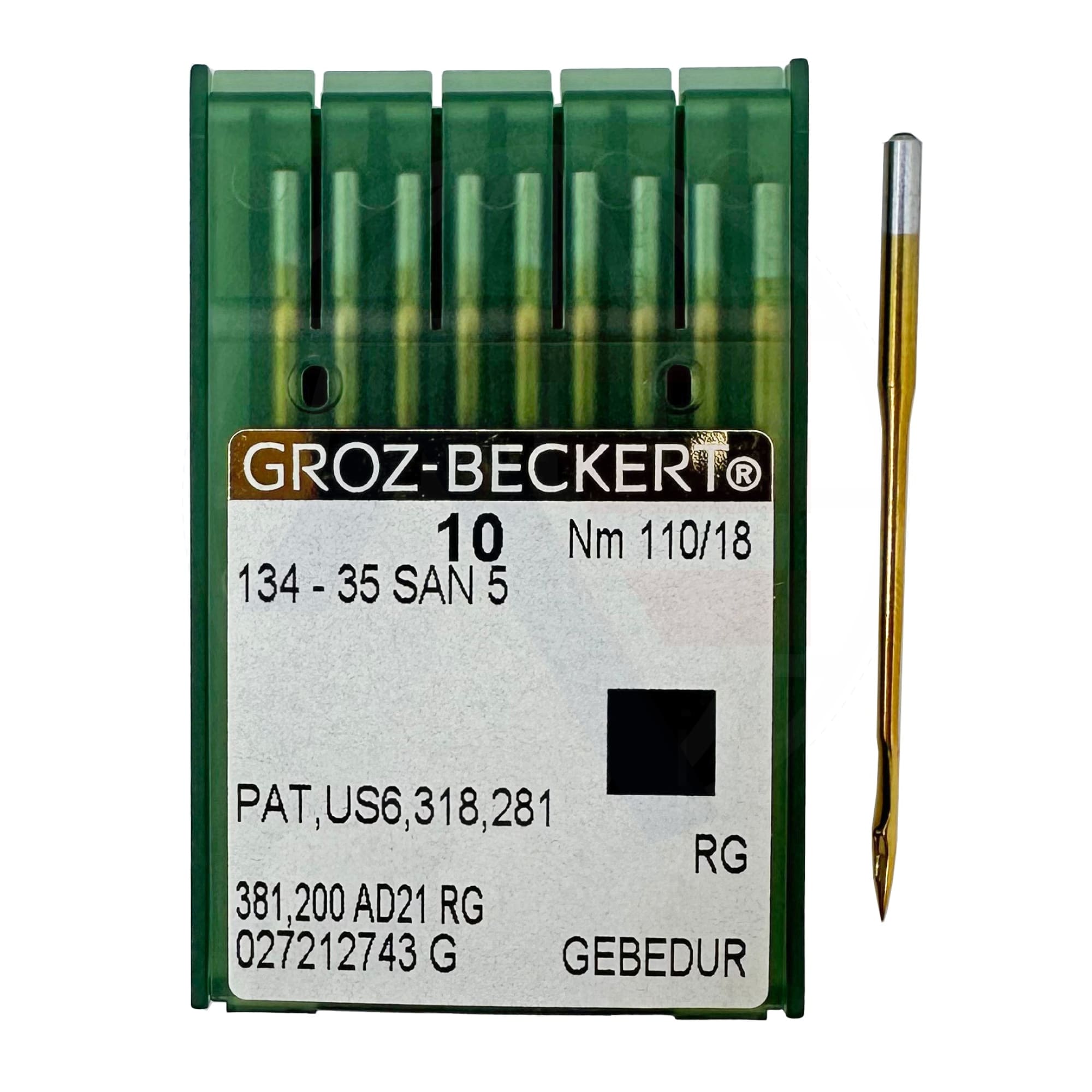

Groz Beckert 134-35 SAN 5 point GEBEDUR size 110 needles in a pack of 10.
RG (Normal round point with small ball)
- Slightly rounded shape of the point
- Suitable for knitted and woven fabrics and microfiber
- Standard point for chainstitch as well as single and multihead embroidery
- Perfectly suited for button sewing
Groz Beckert Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.
SAN™ 5.2 for the processing of technical textiles
The SAN™ 5.2 special application needle is suitable for processing extremely hard materials or material combinations. The reinforced blade increases the stability of the needle and the enlarged eye enables the use of thick sewing threads. The double point groove improves the thread guidance in linear and, above all, multidirectional sewing processes. In addition, the scarf chamfers on both sides ensure an optimum loop pick-up by the hook or looper.
Needle Specification
| Customary Needle Designations | VERSION 5.2, 32:10 | |
|---|---|---|
| Further Point Designations | STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R | |
| NM / Size | NM: 110 / Size: 18 | |
| Type of Coating | GEBEDUR™ | |
| Shank-ø | 2 mm | |
| Overall Length | 43.5 mm | |
| Length to Eye | 38.1 mm | |
| Needle Form Description | Straight needle with single groove and scarf | |
| Special application needle | SAN™ 5 for the processing of technical textiles | |
| Technical Sewing Application | Double lock stitch | |
| Stitch Type Class | 300 | |
| Recommended For | Technical textiles, Woven fabrics | |
| Examples of Use | Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets |
