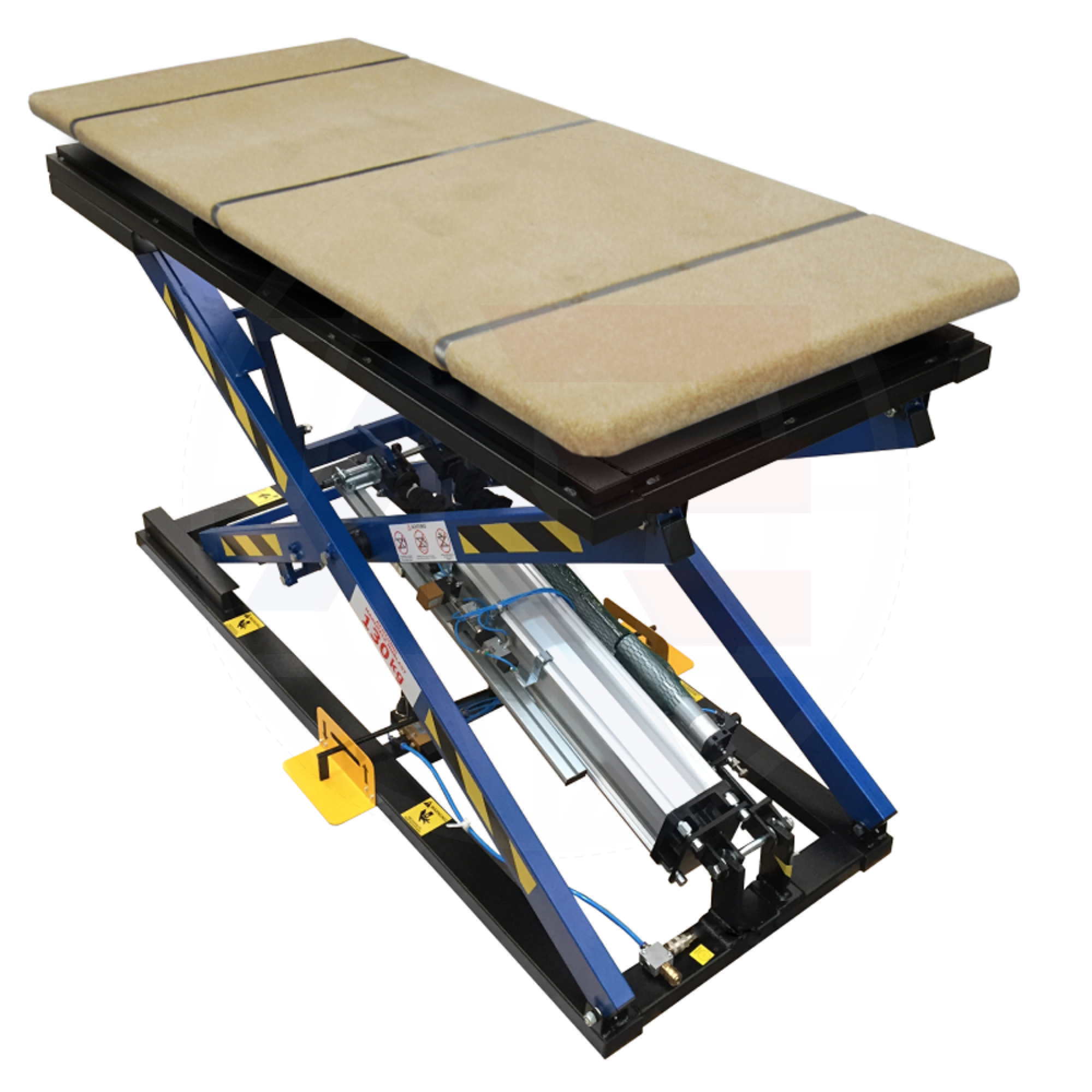

The table ST-3/KPO is equipped with swivel carpet-covered tabletop, steel sliding rails with and spring brake system blocks the tabletop after each 90 degrees. The hydraulic anti-bouncing brake system that helps to prevent the table from bouncing. The table has a Height Positioning System: when one presses a pedal, the table starts to move, making a 2 seconds pause at a certain point of movement. The height of this pause can be adjusted on a special bar placed under the table. This solution allows upholsterer to work at a comfortable height and eliminates the need of time-consuming adjustments of the height of the table.
Key features:
- This solid construction is based on steel profiles and pneumatic cylinder.
- The pneumatic cylinder is foot-controlled.
- The table has a connection slot for pneumatic tools.
- After turning the table off it blocks automatically (cutting power off does not make the table fold).
- The table can be equipped with a drawer for upholstery tools.
- It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
- An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.
Specifications:
Model: ST-3/KPO
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74" x 35.43")
Pneumatic cylinder: D125x600
Minimum height: 430 mm (16.9")
Maximum height: 1380 mm (54.3")
Maximum load: 130 kg (286.6 lbs)
