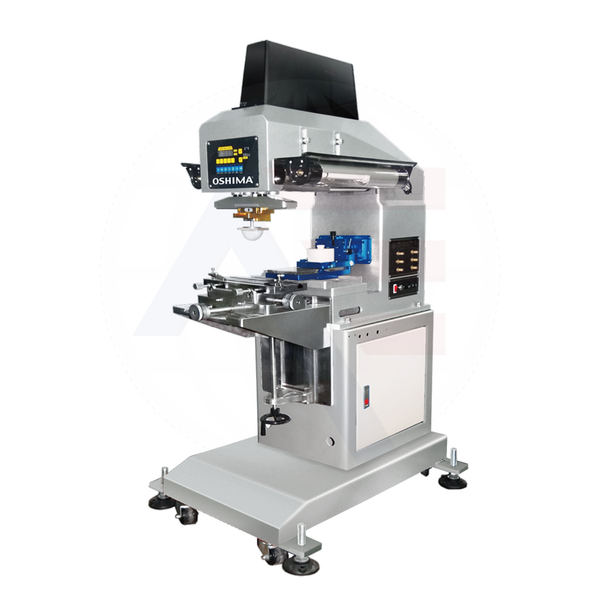

This pad printing machine is designed for sportswear and activewear. It uses inks certified as environmental-friendly and comes with a heated fan which serves to facilitate pad drying. The machine is also fitted with a pad cleaning mechanism designed to remove contamination from the pad and serves to improve yield. The pad can be programmed to print for 1-9 times after inking. The machine operates under a microcomputer system enabling the operator to program pad delays as required. A light is conveniently fitted to the pad printer providing illumination to the workstation. This pad printer can achieve a print 15-20 pieces per minute, and repeat double printing speed of 7.5-10 pieces per minute.
Specification
Model |
OP-15A / OP-15AII |
Power Supply |
|
Maximum steel plate size used (mm)
|
|
Output/hour |
600 ~ 1200
|
Pressure
|
5-6kg
|
Dimensions LxWxH(mm) |
1040x500x1600
|
N.W / G.W (Kg) |
360kg |
