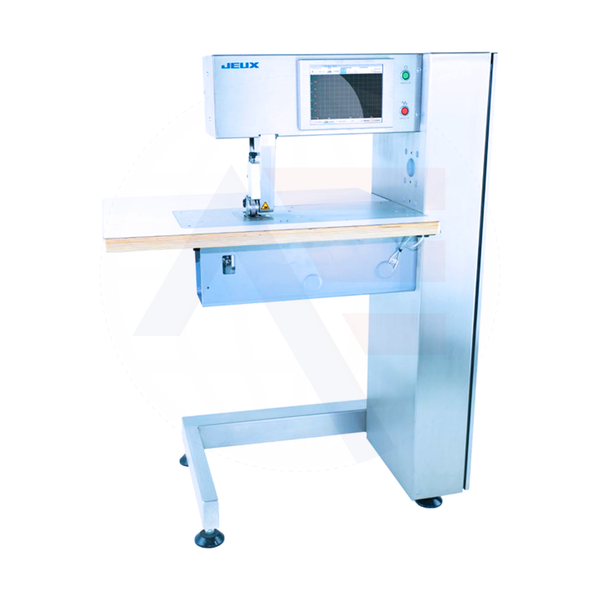

A modern ultrasonic welding-machine needs performance, flexibility, and must be easy to operate. The new JEUX-7510 uses high-tech components to make precise working at the highest level possible. Numerous features allow an individual machine configuration from maximum productivity and reproductivity in serial production. The new JEUX-7510 sets a new standard in the world of welding products. This includes the brand-new software package, which facilitates operation for both beginners and experienced professionals. The newly developed JEUX-7510 ultrasonic-package ensures absolutely precise and constant amplitude-values even at high speeds and sensitive materials.
Features
- A wide range of anvil wheels allows embossing of any profile or welding structure
- No compressed air required
- Newly developed user-interface and custom software
- Cutting and welding functions possible (S Type)
- Flatbed allows for easy and large working area
- Up to 12m/min welding speed possible
- Made in Germany
Specification
- Ultrasonic frequency - 35kHZ
- Ultrasonic generator - Digital generator DG1 400W
- Sonotrode - JEUX-7510S - 10mm width cutting sonotrode
- Contact pressure - Digital pressing-device with 350N pressure (no compressed air)
- Velocity - Max. 12m/min (39ft/min)
- Number of actuations - 2
- Seam width - Max. 10mm (0.39 inch)
- Power supply - 230V (50Hz)
- Air pressure - Not required
