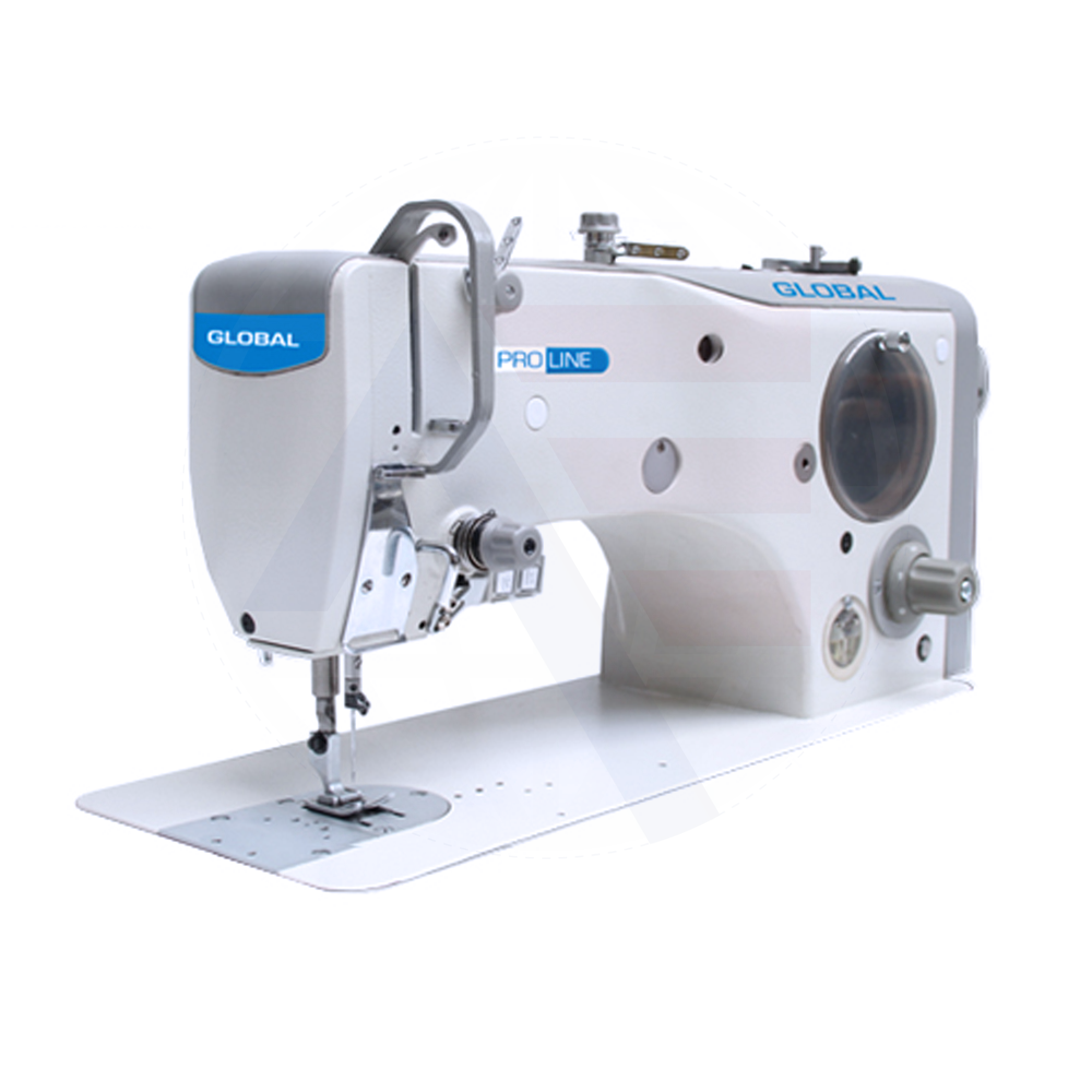

Global ZZ 2560 PROLINE Series Zig-zag Machine

The Global ZZ 2560 series of durable zig-zag machines are suitable for a wide range of applications such as garment making and sail making. There are AUT versions available for each machine which have additional automatic thread trimmer and back tack functions to save the operator time and effort. The features of the different subclasses are outlined below. Please contact our team directly if you would like more information or to discuss which machine would be best suited to your requirements.

Global ZZ 2560 Series Features

• 1 needle zig-zag sewing machines
• Semi-automatic lubrication
• Automatic thread trimmer and back tack (AUT versions)
• Flat bed
• Simple controls
• Energy-efficient servo motor

Global ZZ 2560 Series Specifications

• Max. sewing speed - 4,000spm (dependent upon cam)
• Max. stitch length - 5mm
• Max. zig-zag width - 10mm
• Max. presser foot lift - 12mm
• Needle System - 134R

Global ZZ 2560 Series Subclass Options

• ZZ 2565 - high speed zig-zag machine with semi-automatic lubrication and a built-in bobbin winder. It has a sliding reverse feed and pendant link feed mechanism. The hook is a standard size and the stitch width is 6mm including the direct drive kit. This machine has a maximum speed of 5000spm.
• ZZ 2565 AUT - same as above, but equipped with an electric under bed thread trimmer, back tack, and presser foot lifter.
• ZZ 2567 - high speed, cam controlled, "fancy stitch" zig-zag machine which is supplied with 2 cams as standard. 18 additional cams are available as optional extras. This model has a large hook and a stitch width of 10mm including the direct drive kid. The maximum sewing speed is dependent on the type of cam being used.
• ZZ 2567 AUT - same as above, but equipped with an electric under bed thread trimmer, back tack, and presser foot lifter.
• ZZ 2568 - high speed zig-zag machine with semi automatic lubrication and built-in bobbin winder. It has a sliding reverse feed and pendant link feed mechanism. This model has a large hook and a stitch width of 10mm including the direct drive kit. The maximum sewing speed is 3400spm.
• ZZ 2568 AUT - same as above, but equipped with an electric under bed thread trimmer, back tack, and presser foot lifter.
