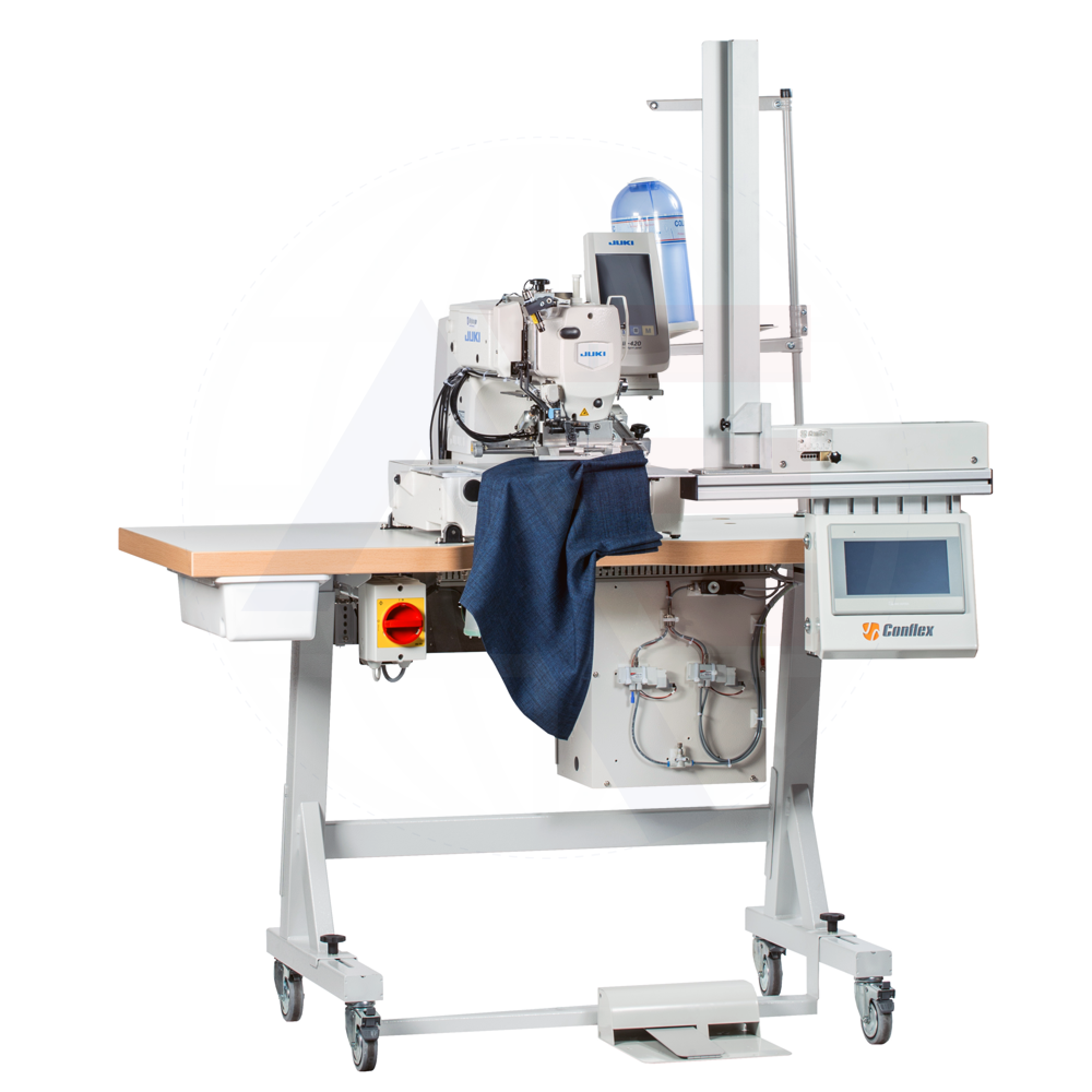

Multifunctional curtain machine that fully automatic supplies the synthetic curtain hook and sews in the synthetic curtain hook into the curtain pleat in one operation.
Specifications:
- Pleat length: max 150 mm
- Pleat depth adjustment 15 till 125 mm
- Adjustment of the distance between the pleats by laser positioning: 60 till 165 mm
- Max. sewing speed: 2,500 sti/min
- Needle thread tension: active tension (electronic thread tension control mechanism)
- Lubrication: semi-dry / hook section: minute quantity lucbrication (tank system)
- Lubricating oil: JUKI New Defrix Oil No.2
- Sewing machine motor: Energy saving 550 W AC Servomotor (direct-drive system)
- Air pressure: 4 bar
